Bobbin Machine

Bobbin machine: bobbin machine is a machine used with a braiding machine, the function is to wind the raw material wire on the pipe, and then use the braiding machine to achieve the weaving effect, a good bobbin machine can greatly improve the production efficiency of the braiding machine, greatly improve the production capacity. There are two commonly used bobbin machines, one is a semi-automatic bobbin machine, and the other is a fully automatic bobbin machine. The disadvantage of the semi-automatic bobbin machine is that it needs to manually replace the pipe, and the advantage is that the semi-automatic bobbin machine can be customized with a multi-head machine, which can maximize work efficiency; The advantage of the automatic bobbin machine is that there is no need to manually replace the pipe, which can greatly save labor costs.

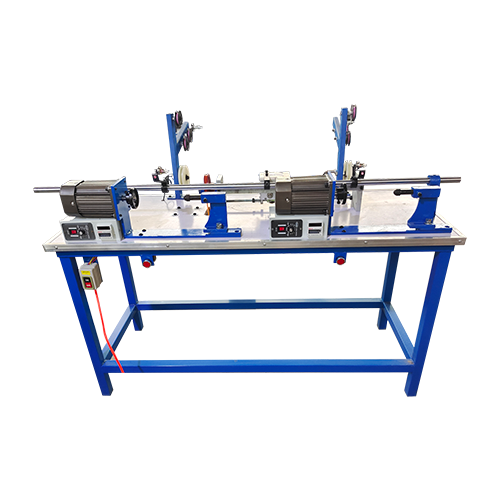

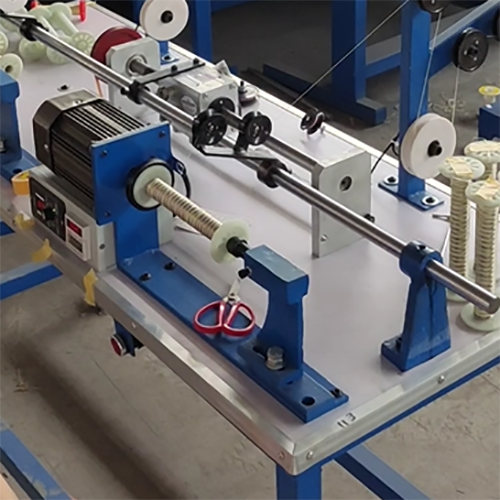

2 head semi-automatic bobbin machine

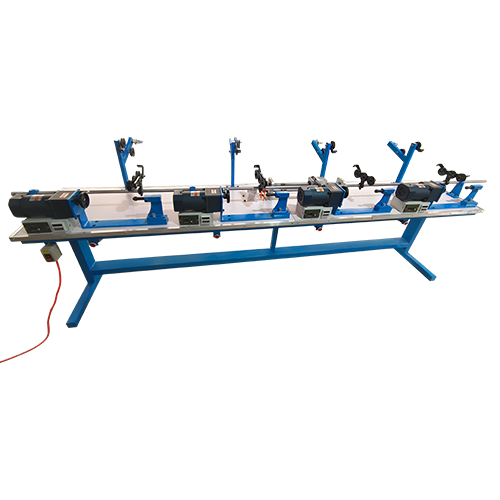

4 head semi-automatic bobbin machine

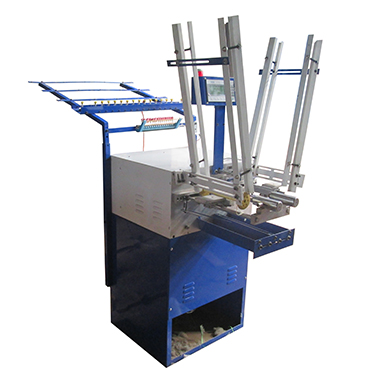

90 automatic bobbin machine

130 automatic bobbin machine

Features Of Automatic Bobbin Machine

  • Double head, speed 3200RPM;
  • Advanced design, compact and reasonable structure, simple operation;
  • The high degree of automation saves labor costs;
  • Yarn break stops automatically and can be counted;
  • Suitable for high-speed machine tubes and some low-speed machine tubes.

Features Of Semi-Automatic Bobbin Machine

  • The number of heads is variable, and the maximum speed is 2800RPM;
  • Can count tones;
  • Suitable for all kinds of pipes.

Applicable Materials

There are many varieties of suitable raw materials for the Bobbin Machine. such as polyamide nylon (PA), polypropylene (PP), polyester (PET), aramid fiber, high-strength polyethylene, cotton, leather, metal wire, galvanized iron wire, copper wire, stainless steel wire, nickel-titanium alloy wire, etc.), also have glass fiber, carbon fiber, silicon carbide fiber, basalt fiber composite materials such as weaving.

Carbon Fiber

Polyester

Nylon

Yoshin

Polyester

Stainless Steel Wire

Glass Fiber

Copper Wire

Bobbin Machine Function

  • Semi-automatic Bobbin Machine: the governor adjusts the line speed, the light rod cable arranger adjusts the cable width, the counter counts the number of coils, and the full circle is self-stopping.
  • Automatic Bobbin Machine: counter counts the number of coils, the governor adjusts line speed, the light rod cable arranger adjusts the width of the cable, and the counter stops when it is full of circles.
  • Motor: cable motor, different bobbins, different motors.

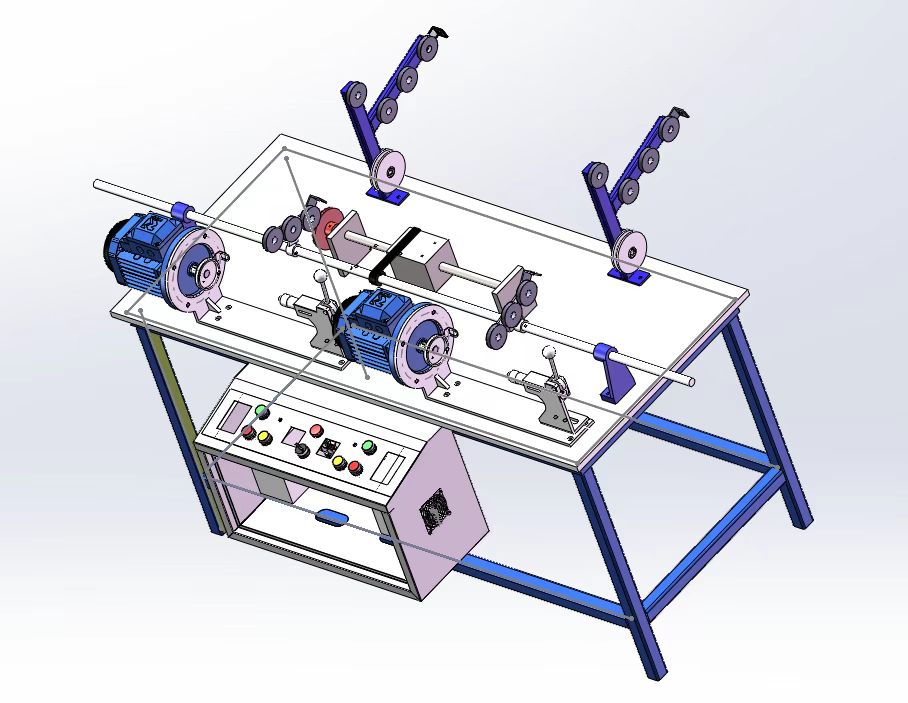

Semi-Automatic Bobbin Machine Detail

Process Of Using The Machine Out Of The Box

  • Open the electric box and find the packing list. Check accessories and parts according to the list.
  • Make sure the voltage matches between the machine and your workshop. Ask a professional electrician to connect the power supply. Make sure of the grounding of the machine.
  • Check the balance of the machine before use.
  • Check all the oil filler holes and make sure they are well-oiled.
  • Make sure the bearing is well-oiled.
  • Yarn threading:Attention: A. Each yarn should be threaded through one ceramic eyelet. Make sure the yarns do not cross.
    B. Yarn diameter should be within 2mm.
    C. Check if all the yarns have the same tension.

Precautions For Machine Use

Please pay attention to the following to keep the machine in a good state:

  • Do not place the machine in direct sunlight. Keep the machine away from fire and high temperatures.
  • Do not place the machine in damp. Do not let water on the machine. Keep the air humidity between 30%and 80%.
  • Do not place the machine in places of severe pollution.
  • Do not place the machine on tilt or uneven ground.
  • Do not put heavy objects and unrelated things on the machine.
  • Keep the machine from magnetic-field interference.

Troubleshooting And Maintenance Of Machines

  • Bobbins are not sent into: (A). Check if obstacles blocked the parallel rod; (B). Check if the sliding rail is blocked in the right position; (C). Check if the feeding arm screws are loose; (D). Check if the bobbin outlet screws are loose.
  • Bobbins are not clamped: (A). Check if the rubber piece is worn out; (B). Check if the bobbin is damaged tightly; (C). Check if the back pressing pins are loose.
  • The heating cord does not tum: (A). Check if the heating cord is but; (B). Check if the power is disconnected red or only part of it is red; (C). Check if the heating cord staff screws are loose; (D). Check if the heating temperature control knob works.
  • Abnormal sound during: (A). Check if the machine is placed on even ground; (B). Check if any screws are loose operation; (C). Check if there is any obstacle in the belt pulley; (D). Check if the pressing pin bearing is broken;
  • Uneven traverse: (A). Check if the yarn tension is even; (B). Adjust the knurled nuts for even yarn tension.
  • No PLC display: (A). Check if the 110V power switch works; (B). Check if the plug behind the display is loose.

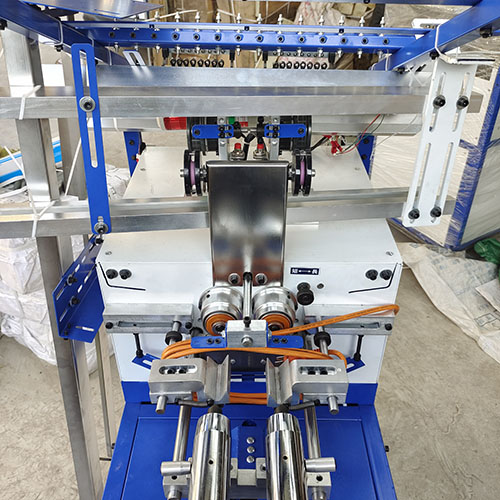

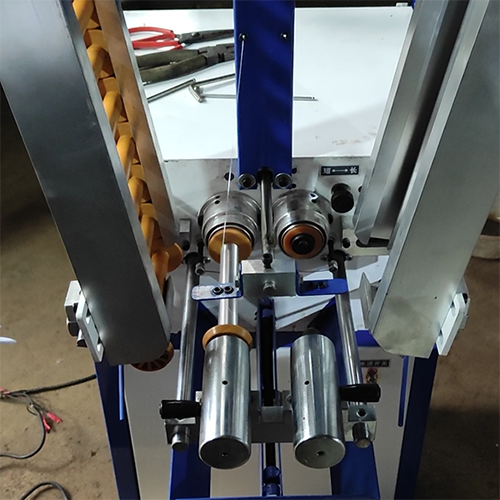

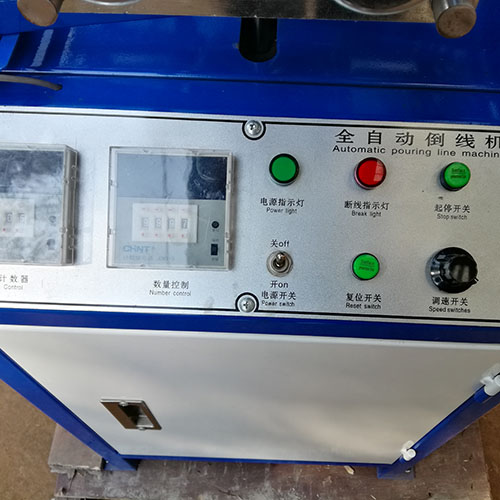

Automatic Bobbin Machine Detail
